1全自動旋轉式給袋真空包裝機由兩種分離的旋轉式機體組成（分別為充填系統和真空系統）

2操作方便：采用PLC觸摸屏控制，人機界面操作系統，操作直觀方便；

3調節方便：真正實現全自動化。只需從人機界面輸入所需參數，包裝機各部位即可調節到所需指令的部分（自動調整袋寬，自動升降上袋機構）

4自動化程度高：達到全自動真空要求，在稱重、包裝過程中實現無人化。出現故障自動報警

5完善的預防系統，可智能檢測是否開袋及開袋是否完整，在不合適加料的情況下不加料不熱封。不浪費袋子及物料，節約成本。

6設備符合食品加工機械的衛生標準，設備與物料接觸部分采用304不銹鋼或其他符合食品衛生要求的材料加工，保證食品的衛生和安全，符合GMP標準；

7使用預制包裝袋，封口質量高，提高成品檔次

8適用包裝物料范圍：可選配不同的計量機構（醬腌菜計量機，多頭組合稱）對小魚仔，醬腌菜，顆粒不規則物料，液體醬料，堅果炒貨，麻辣膨化等物料進行包裝。

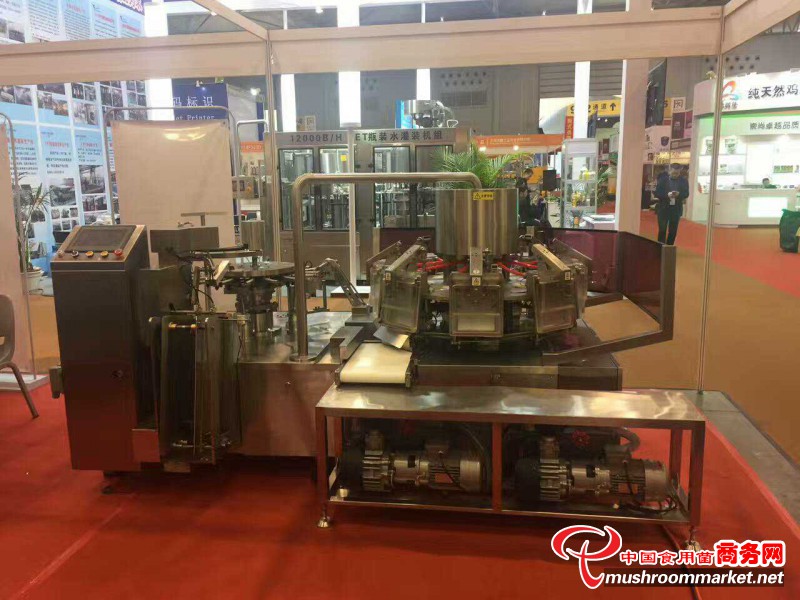

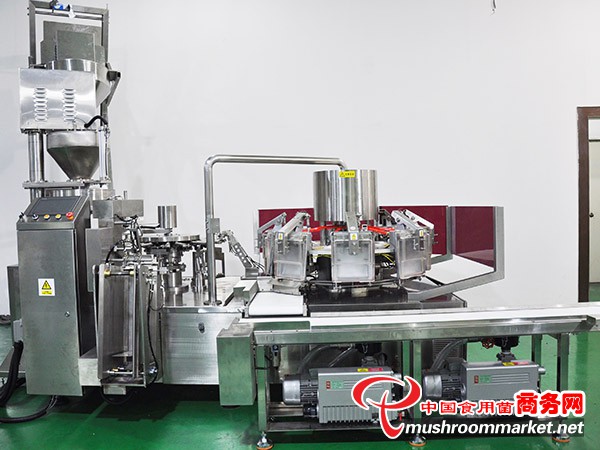

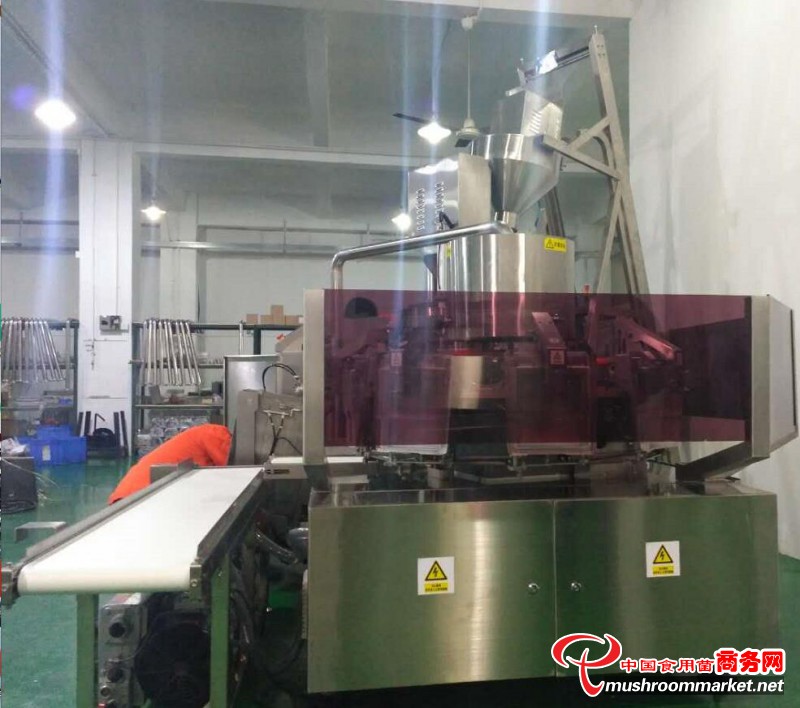

1、Automatic rotary vacuum packing machine for bags separated by two rotary body composition(filling and vacuum  systems)

2、Easy to operate:PLC touch screen control,man-machine interface operating

    system,intuitive and easy to operate.

3、Easy to adjust:real fully automated.Just part of the required input parameters

     from the man-machine interface,all parts of the packaging machine can be

     adjusted to the desired command.

4、The high degree of automation:up automatic vacuum requirements,weighing

     and packaging process to achieve unmanned. if there is fault alarm occurs.

5、 Perfect prevention systems,may only detect whether it opens the bag,and

      opening bags is complete,in the case of inappropriate feeding does not feed

      heat sealing.No wasting bags and material,it costs savings.

6、The device complies with hygienic standards of food processing machinery,

     equipment and material contact parts made of 304 stainless stell or other

     materials with food hygienic requirements processing,and ensure food

     hygiene and safety,in line with GMP standards.

 7、The use of prefabricated bags,high sealing quality,improve product quality.

 8、Suitable packaging materials range:Matching multiple metering which packs

      fish aberdeen,pickles,roasted nuts,spicy puffed,liquids and other materials.

 工作流程（Work process）

1.上袋、2開袋、3下料、4加液、5預留、6預留、7渡袋、8預留-（真空）、1.接袋、2合蓋

3.一次真空、4二次真空、5三次真空、6四次真空、7封口、8封口冷卻、9放氣、10開蓋出袋

1.feed bags,2.open bags,3.fall material,4.add liquid,5.reserve,6.reserve,7.pass

  bags,8.reserve(vacuum),1.receive bags,2.close the lid,3.vacuum one time,

  4.vacuum twice,5.vacuum three times,6.vacuum four times,7.seal,8.seal&cool,

  9.deflate,10.open the lid and output.

 一、設備主要配置

1. 斗式提升機（Hopper type elevator)
2. 醬腌菜計量機（Pickles metering machine)
3. 自動真空包裝機（Automatic Vacuum Packing Machine)
二、主要技術參數（Main technical parameter)
1. 包裝袋規格（Bags Specifications） W:80-175mm L:80-250mm
2. 袋子類型 （Bag Type） 自立袋、手提袋、拉鏈袋、四邊封袋、三邊封袋、紙袋、復合袋等Stand-up pouches,handbags,zipper bags,4-side sealing bags,3-side sealing bags,paper bags,compound bags,etc.
3. 包裝速度 Packing speed 35-50包/分 bags/min(由產品特性及充填重量決定 depending on the product features and filling weight)
4.主機重量 Weight 2300kg
5.主機功率 Host power 4KW(不含真空泵 not including vacuum)
6.驅動電源 Drive power 三廂五線 380V 50HZ 3-Phase 5-wire system 380V 50HZ
7.外形尺寸 Dimensions 2400x2200x2800mm(不含提升機 without elevator)

8.耗氣量 Air consumption ≥0.4m3/min (壓縮空氣由用戶自行提供 compressed air provided by the user)

9.冷卻用水 Cooling Water 冷卻水 Cooling water :15℃-25℃、3升/分3liters/min (建議配冷水機 recommended with cooler)
